CORNER REND PVC GWS ECO 8424
Download the technical data sheetReferences
- Pieces × dimension: 25 x 2.50 m - 62.50 m
- Packs per palette: 40
- Product number: 8424025250
Description

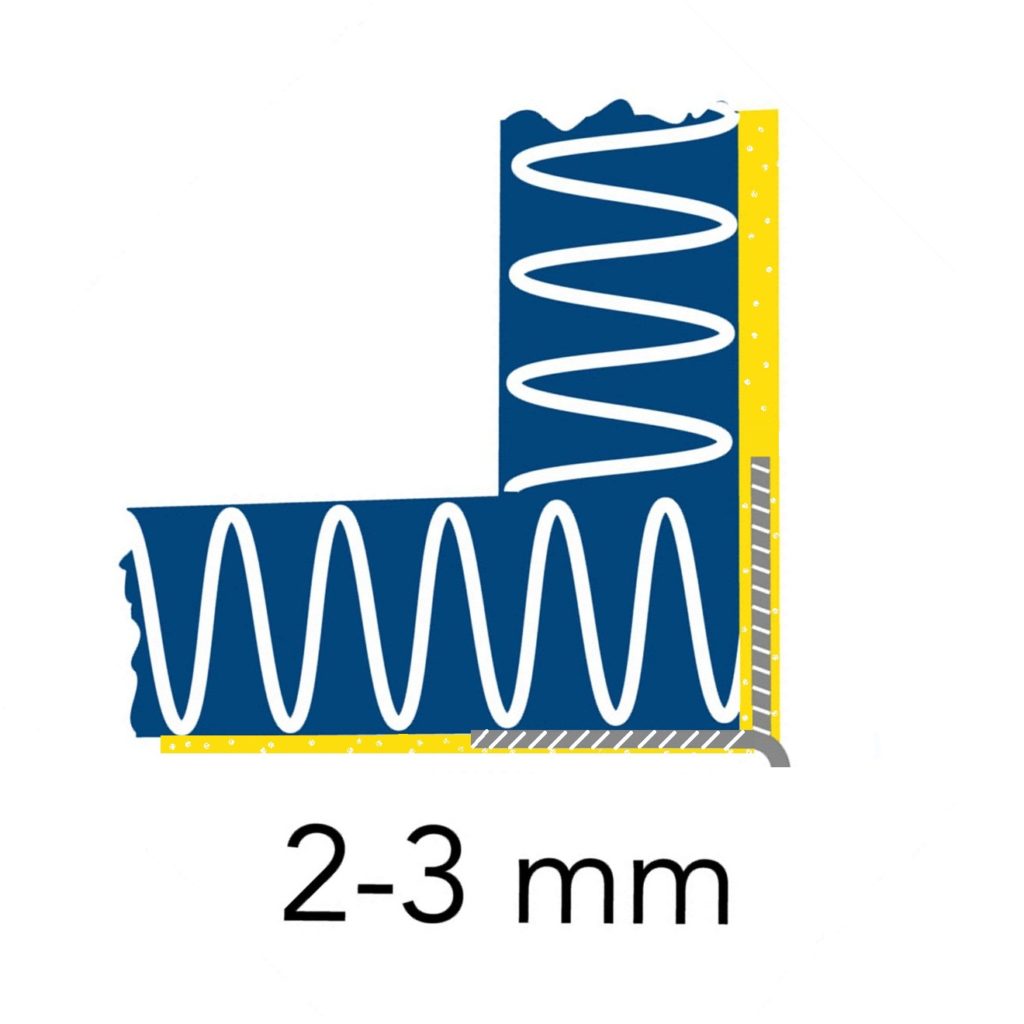

- Bellcast corner bead (invisible nose)
- ETICS/EIFS insulation systems
- PVC and white fiberglass
- Wings of 25 mm, with triangular perforations 22 x 15 mm; fiberglass of 10 cm; bellcast nose of 10 mm
- For a bellcast finishing of balconies corners for ETICS/EIFS insulation systems
Plaster Thickness
3 mm
Positioning
- Before fixing, check that the corners formed by the insulation boards are set square
- Fixing using adhesive render on the corners of the insulation
- After drying, finishing of the corner using render of +/- 3 mm thickness
Production
- Extruded from high quality recycled PVC material resistant to shock and UV in accordance with standard BS EN 14001:2004 and BS EN 9001:2008
- Fire classification: B1 in accordance with standard DIN 4102
- ETAG 004 certified fiberglass
Stock
8424025250 : Out of stock
