SOCLE PVC GWS PRO 8497
Download the technical data sheetDescription
For an insulation thickness of 160 mm
References
- Pieces × dimension: 10 x 2.50 m - 25.00 m
- Packs per palette: 28
- Product number: 8497010250
Description

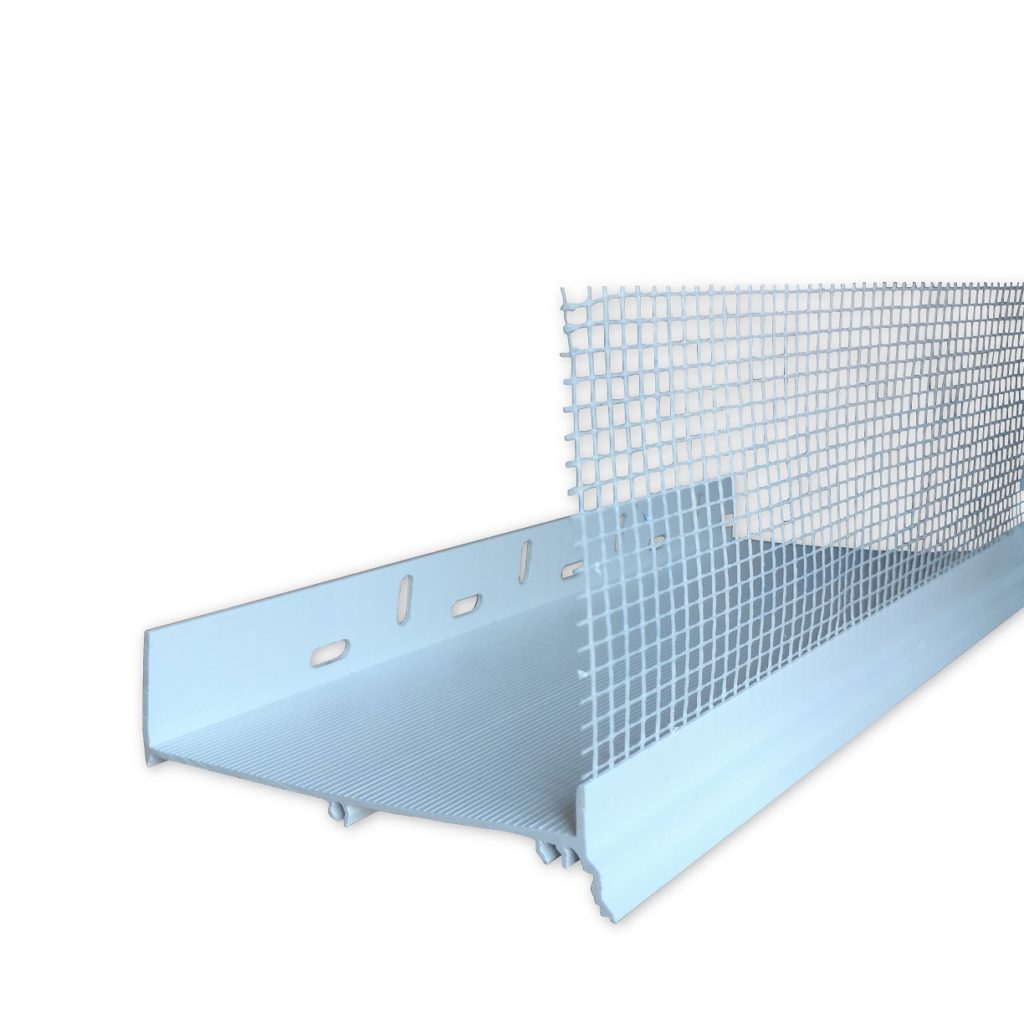

- PVC base profile used as an insulation edging at the base of a façade and used to attach insulation boards; PVC stop profile integrated with white fiberglass
- ETICS/EIFS insulation systems
- Width of 160 mm, with 1 wing with round and oblong perforations on one side to fix on the facade, and a bellcast stop profile in staircase shape (for a finishing of 3 ou 6 mm) with white fiberglass
- For the finishing of renders on base profiles in ETICS/EIFS insulation systems
Plaster Thickness
3 or 6 mm

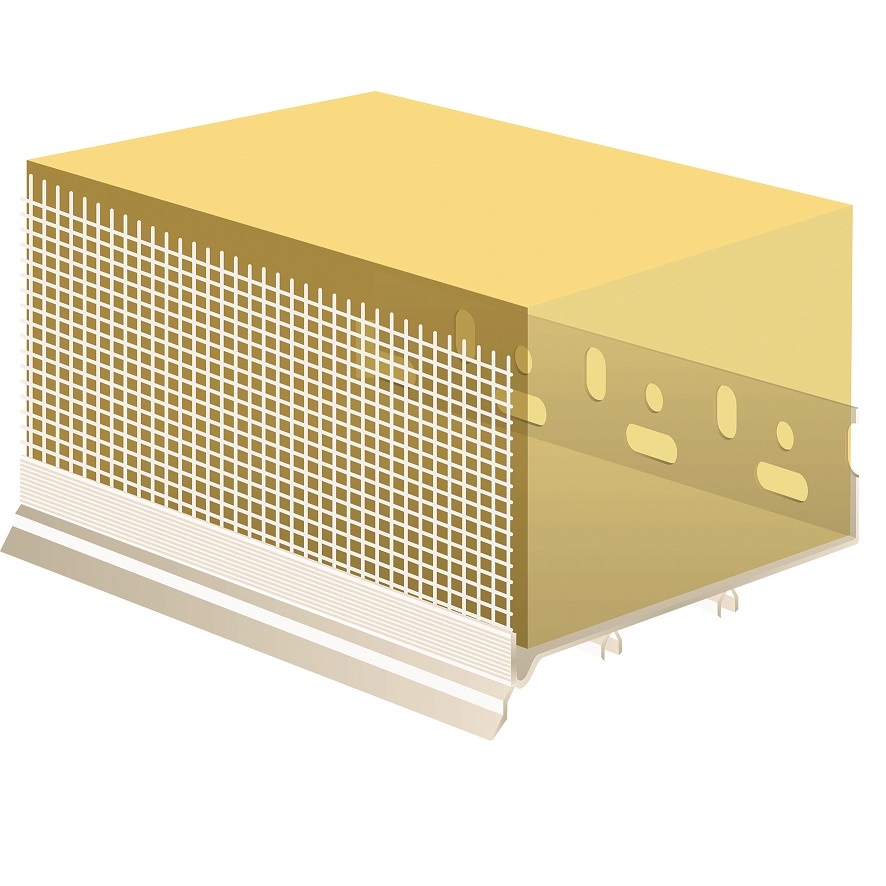

Positioning
- Mechanical fixing (level) at the bottom of the facade
- Positioning of insulation boards inside the profile
- Finishing using render of 3 or 6 mm thickness
Production
- Extruded from high quality PVC material resistant to shock and UV in accordance with standard BS EN 12608
- Fire classification: B1 in accordance with standard DIN 4102
- ETAG 004 certified VERTEX fiberglass resisting to alkali and stretching
Stock
8497010250 : Out of stock
