STOP ISO GWS 8231

Download the technical data sheet

References

  • Pieces × dimension: 25 x 2.50 m - 62.50 m
  • Packs per palette: 24
  • Product number: 8231025250

Description

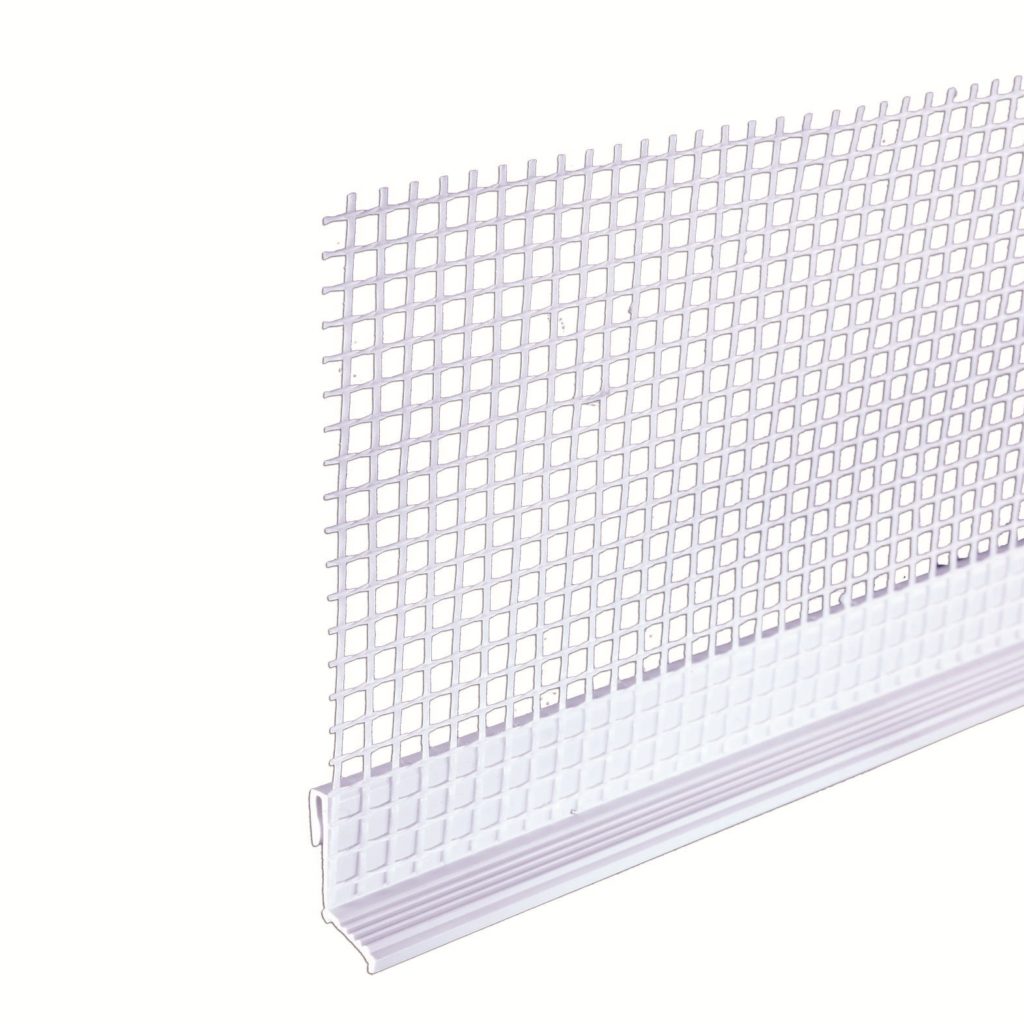

  • Stop profile
  • ETICS/EIFS insulation systems
  • PVC and white fiberglass
  • Full wing of 20 mm ; return of 10 mm ; white fiberglass of 10 cm
  • For the finishing of renders on base profiles in ETICS/EIFS systems

Plaster Thickness

10 mm

Positioning

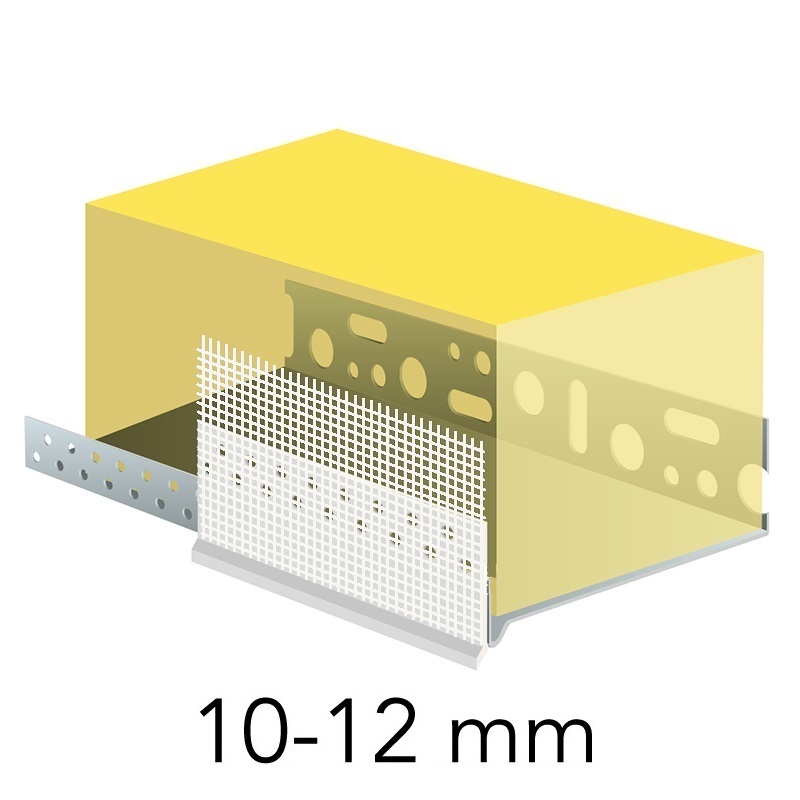

  • After applying insulating panels, clipping the  STOP ISO GWS 8231 to the upper section of the base profile
  • Finishing using render of 10 mm thickness

Production

  • Stop profile extruded from high quality PVC material resistant to shock and UV in accordance with standard BS EN 12608
  • Fire classification: B1 in accordance with standard DIN 4102
  • ETAG 004 certified fiberglass resisting to alkali and stretching

Stock

8231025250 : Out of stock
